• NEMA
11 • NEMA
14 • NEMA
17 • NEMA
23 • NEMA
34 • NEMA
42 • STEPPER
DRIVES •
All
Stepper Motors can be supplied with rear shafts, encoder
mounted or mounting provisions, special shaft configurations,
and special cabling.
•top
of page•

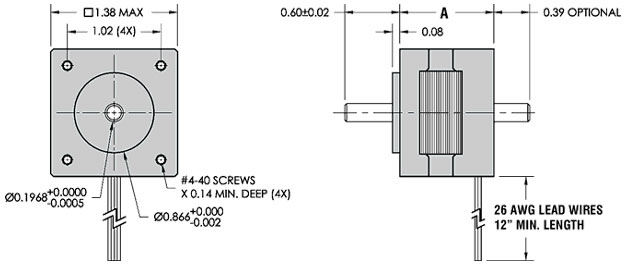

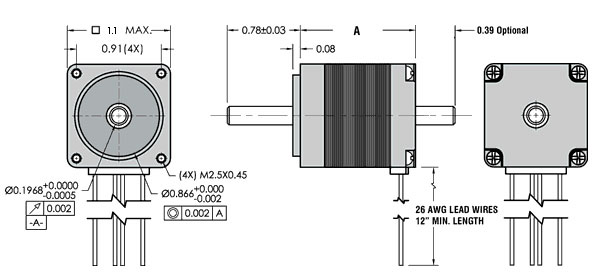

• NEMA
11
• Step
Angle: 1.8 Degrees
• Small Package
• Cost Efective
• Custom Windings Available
|
|
|
• Dimension "A"
1.24" (31.5mm)
1.75" (44.5mm)
1.99" (50.5mm) |
• Torque
Oz-In
9.2
13.7
16.6 |
|
|
•top
of page•

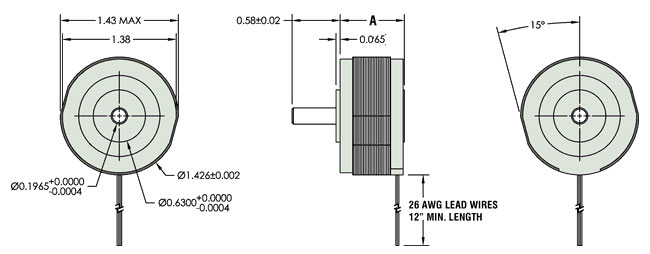

• NEMA
14
• Modular
Size 14
• Step Angle 0.9 Degrees
• High Step Accuracies
• Custom Windings Availalbe
|
|
|
• Dimension "A"
0.78" (19.8mm) |
• Torque
Oz-In
16.0 |
|
|
• NEMA
14
• NEMA
Size 14
• Step Angle 0.9 Degrees
• Accuracy to +/- 1.5 Arc Min.
|
|
|
• Dimension "A"
0.82" (20.8mm) |
• Torque
Oz-In
16.0 |
|
|

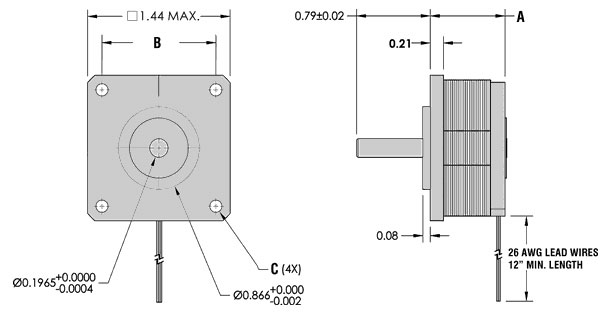

• NEMA
14
• NEMA
Size 14
• Step Angle 1.8 Degrees
• Custom Windings Availalbe
|
|
|
• Dimension "A"
1.02" (26mm) |
• Torque
Oz-In
7.5 |
|
|
•top
of page•

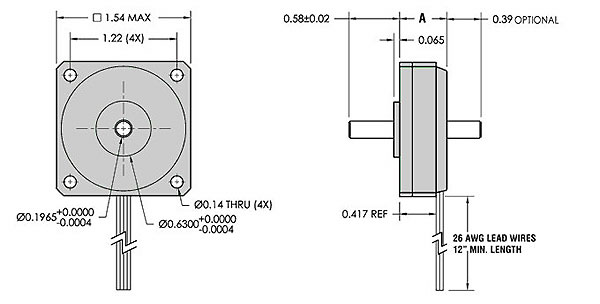

• NEMA
17
• Super
Slim Line 17
• Step Angle 0.9 Degrees
• Ideal for High Speeds
|
|
|
• Dimension "A"
0.54" (14mm)
0.58" (14.7mm)
0.68" (17mm) |
• Torque
Oz-In
6.0
7.0
8.0 |
|
|
|

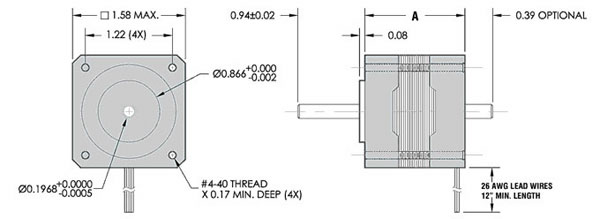

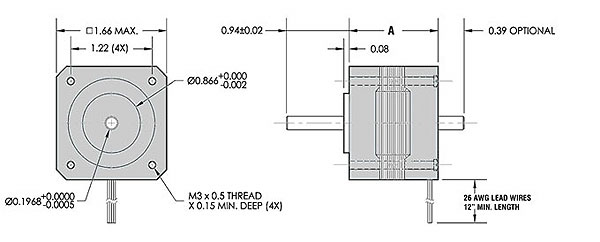

• NEMA
17
• Standard
Size 17
• Step Angle 0.9 & 1.8 Degrees
• Custom Windings Available
|
|
|
• Dimension "A"
0.896" (22.7mm)
1.02" (26mm)
1.10" (28mm)
1.30" (33mm)
1.38" (35mm)
1.54" (39mm)
1.88" (47.7mm) |
• Torque
Oz-In
8.4
15
16
19
22
30
45 |
|
|
|
• NEMA
17
• High
Torque Size 17
• Step Angle 0.9 & 1.8 Degrees
• Custom Windings Available
|
|
|
• Dimension "A"
1.30" (33mm)
1.33" (34mm)
1.50" (38.1mm)
1.57" (40mm)
1.85" (47mm) |
• Torque
Oz-In
22.2
35
36.1
62
75 |
|
|
|
•top
of page•
• NEMA
23
• 0.45
Degrees Size 23 Stepper
• 0.45 Full Step (1 arc minute)
• Highest Step Accuracy
|
|
|
• Dimension "A"
1.73" (44mm)
2.17" (55mm) |
• Torque
Oz-In
75
140 |
|
|
|

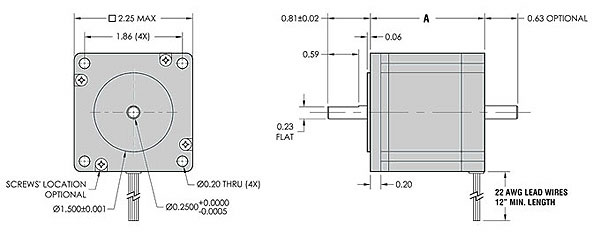

• NEMA
23
• 0.9
& 1.8 Deggrees NEMA 23 Stepper
• Standard or High Torque
• Low cost
|
|
|
• Dimension "A"
1.73" (44mm)
2.17" (55mm)
3.10" (78.7mm)
4.02" (102.1mm) |
• Torque
Oz-In
92
163
253
315 |
|
|
|

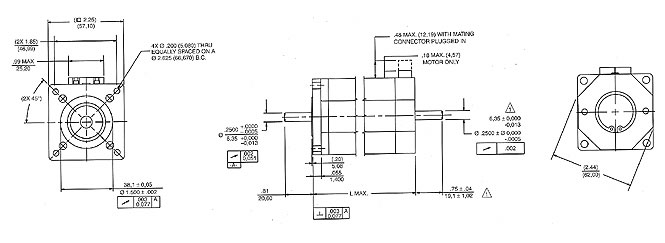

• NEMA
23
• 1.8
Degrees NEMA 23 Stepper
• Quick Disconnect Cable
• High Torque
|
|
|
• Dimension "L"
1.60" (40.7mm)
2.06" (52.4mm)
3.10" (78.8mm) |
• Torque
Oz-In
64
144
253 |
|
|
|
•top
of page•

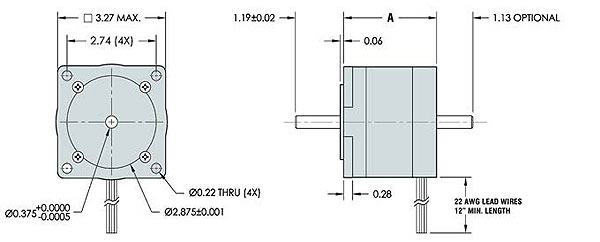

• NEMA
34
• Standard
NEMA 34 Stepper
• Wide Selection
• Low Cost
|
|
|
• Dimension "A"
2.50" (63.5mm)
3.74" (95mm)
5.07" (129mm) |
• Torque
Oz-In
228
438
625 |
|
|
|

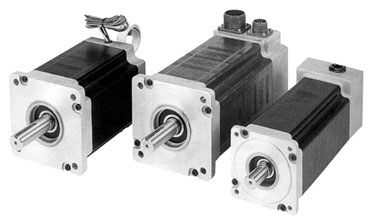

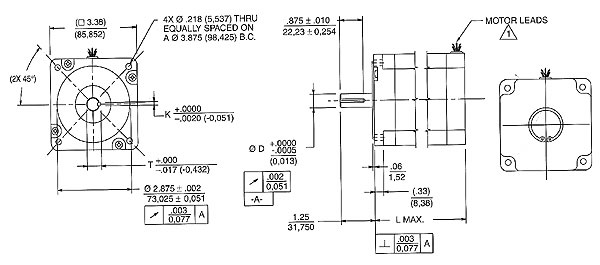

• NEMA
34
• High
Torque NEMA 34 Stepper
• Highest Torque in Industry
• Low Cost
|
|
• Dimension "L"
3.13" (79.5mm)
4.65" (118.1mm)
6.17" (156.72mm)
7.68" (195.07mm) |
• Torque
Oz-In
845
1580
2340
2790 |
|
|
|
•top
of page•
• NEMA
42
• Highest Torque in Industry
• Low Cost
|
|
• Dimension "L"
3.89" (98.1mm)
5.91" (150.11mm)
7.95" (201.17mm)
|
• Torque
Oz-In
2135
4025
5700
|
|
|
|
•top
of page•
• 6210/6215
SERIES STEPPER DRIVES
• Input
Voltages: 24.40Vdc
• Output Current: 1 To 3.5A
•Step Sizes: 1/2, 1/10. 1/25, 1/100
• Interface: Step & Direction (6210) +/- 10Vdc
(6215)
• Connection: Screw Terminals
• Compact: 1.56" x 4.13" x 3.25"
• Low Cost (OEM Models Available)
|
|
|
|
• 6410/6415
SERIES STEPPER DRIVES
• Input
Voltages: 24-75Vdc
• Output Curent: 0.625 to 7.1A
• Selectable Step Sizes: full to 1/256
• Interfaces: Step 7 Direction (6410) +/- 10Vdc
(6415)
• Idle Current Reduction
• Compact: 1.5" x 5" x 4.3"
• Low Cost
|
|
|
|
• P7000
SERIES STEPPER DRIVES
• Input
Voltage: 120 or 240Vac
• Current: 2.5 cont., 3.5A peak
•
Step Resolution to 25,600 steps/rev.
• Motor Inductance range from 50-200mH
• Speed Range from 0-5- revs/second
• Open loop Stall Detect: Detects the stalling of the
motor without an encoder or resolver. Also detects
if the motor position shifts while at rest.
• Dynamic Snoothing rounds the edges of the move profile
(pseudo-S curve)
• 9-Programmable Inputs Optically Isolated 5-24 Vdc
sinking or sourcing
• Fault Output, one user-configurable output
• Programmable jog function w/dual speed settings
• Compact: 2.06" x 5.2" x 6.7"
• Low Cost
|
|
|
|
